In Plane Magnetic Field of a Current Loop

Well, this one is a failure (for now).  In the comments on my post about the "Off Axis Magnetic Field of a Circular Current Loop" I was asked why I'd chosen to solve the problem the way I did and why I didn't calculate the Magnetic field using the more familiar version of the Biot Savart law.  I don't know.  I just happened to pick this method and it worked.  I was also asked about calculating the in plane magnetic field of a circular current loop and my response was use the 3 dimensional solution and set z to 0.

I did want to try and calculate it just using the Biot Savart law.  After all, the field shouldn't be that hard to work out.  Due to the geometry of the problem there can only be a magnetic field perpendicular to the plane of the current loop when z=0, and due to rotational symmetry you only need to calculate the magnetic filed along the x axis for example and then revolve it to generate the entire field.  Easy, except I just can't get it.  I'll show my attempt below.

Equations
Magnetic field of a current loop derived from Biot Savart

That's where I hit a wall.  I've made some progress, but I just can't get the equation into a form that makes the use of elliptic integrals easy.  I took the vector cross product of the infinitesimal current element and the vector pointing from the current element to the point that the field is to be calculated at and divided that by the distance between these points squared.  This is then integrated around the current loop.

Diagram
Geometry of the situation

I've performed numerical integration using maxima at various steps of my calculation to make sure I haven't made any mistakes.  Although it's no guarantee I'm right, all the answers match.
Equations

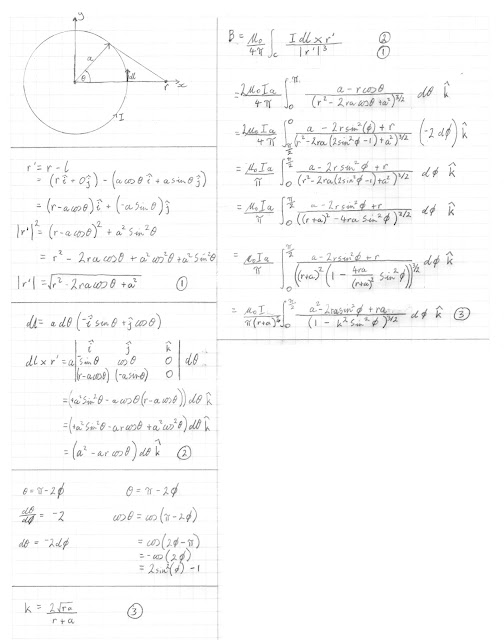

Current Loop In Plane Field Working

Looking at the equation below from my original blog post you can see the equation I'm aiming for if you set z to equal 0.  Plugging numbers into this also yields an answer equal to what my equation above gave.

Equations
Desired Equation

I think this is one of those cases where it's all a mater of finding the right identity or change of variable.  I might let my subconscious work on it for a while and come back to it refreshed.


Update - 4 December 2015

I solved it.  It was relatively easy in the end. I just needed to take a break and look at it differently.

Equations
In plane magnetic field of a circular current loop
